Tubular vibrating Conveyor

Experts in Conveyor Vibration System. Have 30+ Years of Experience in Vibration Conveyor Systems.
Hot Sale High-Quality Tubular vibrating Conveyor Online from China.

Tubular vibrating conveyor
Tubular vibrating conveyor

Tubular Conveyor

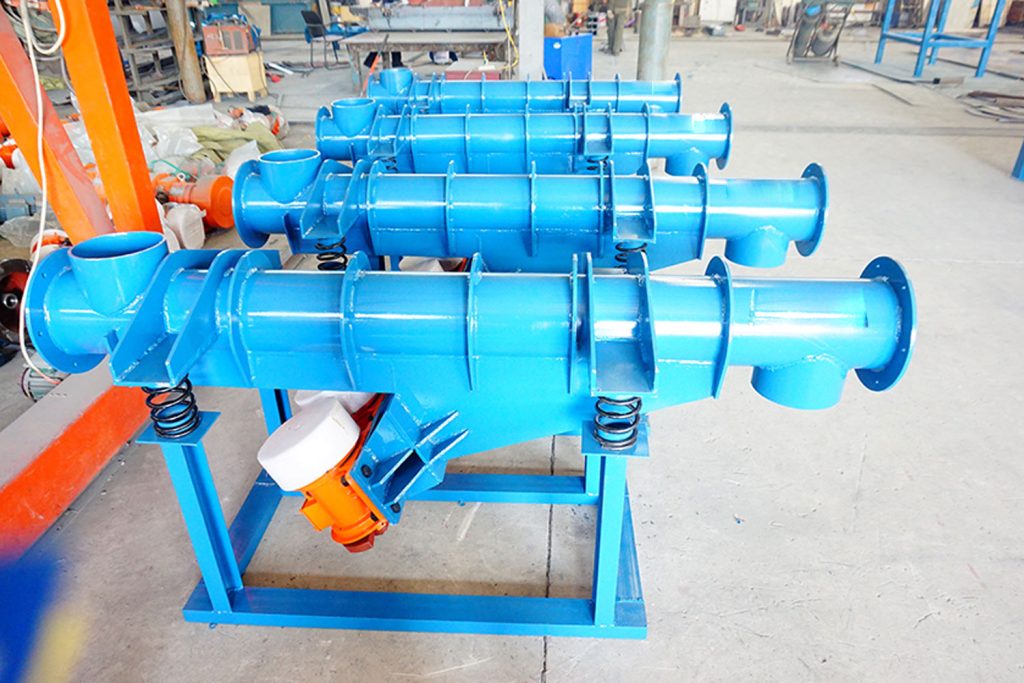

The Vibrating Tubular Conveyor is a fully enclosed method of transporting light, and loose materials in a dust-free, environmentally protected, and controlled manner. The tubular conveyor is vibrated by two out-of-balance vibrator motors creating a linear motion that drives the material along the tube in a horizontal position or declines for increased velocity and material throughput. The tubes are offered in various diameters depending on required throughput up to 300 TPH and up to 6m lengths that can be linked together allowing for varied overall conveying lengths.

Tubular vibrating conveyor
Tubular vibrating conveyor

Application of Tubular vibrating Conveyor

Tubular vibrating conveyors are widely used in metallurgy, coal, chemical, building materials and other industries to continuously and evenly transport bulk materials such as small blocks, granules, and powders to the next equipment. It is suitable for continuous conveying of powdery materials and toxic volatile materials.

Tubular vibrating conveyor
Tubular vibrating conveyor

Features of Tubular Conveyor

The tubular vibrating conveyor can convey multiple rigid sections continuously and synchronously. According to the requirements of process design, it can meet the requirements of multi-point feeding and discharging.

The tubular vibrating vibrating conveyor has the advantages of simple structure, convenient installation, no need for lubrication, long service life and low power consumption.

The tubular vibrating conveyor adopts the thyristor half-wave rectification control circuit, which can steplessly adjust the conveying volume and realize the centralized control and automatic control of the production process.

Tubular vibrating conveyor
Tubular vibrating conveyor


The Vibrating Conveyor range can be designed with various options that include, but are not limited to, the following:

  • Hard-wearing stainless steel tubes
  • Tube diameters from 100mm to 600mm
  • Multi tubes in series allow varying conveying lengths
  • Single to multi inlet and outlet configurations
  • Tube rotation to extend wear life when conveying abrasive materials
  • Base mounted or suspended
  • Electric or Pneumatic vibrators
  • Enclosed conveying offering environmental & material protection and dust control
  • Automatic outlet valve option for remote flow control
  • Full control panel options
