Wide Trough Vibratory Feeder is an energy-saving coal feeder for feeding materials before vibrating screens or jigs in coal preparation plants.
Wide Trough Vibratory Feeder
Wide Trough Vibratory Feeder is an energy-saving coal feeder for feeding materials before vibrating screens or jigs in coal preparation plants.

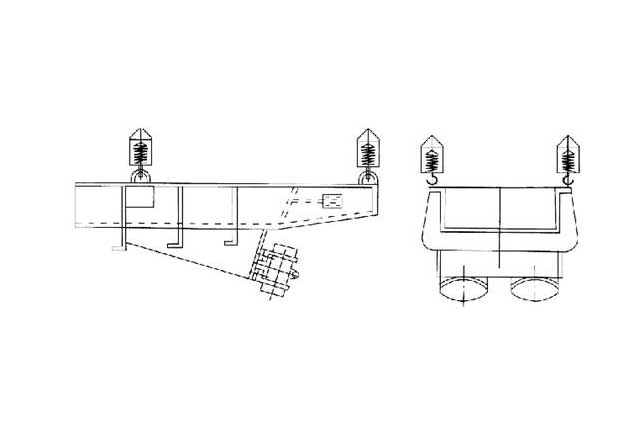

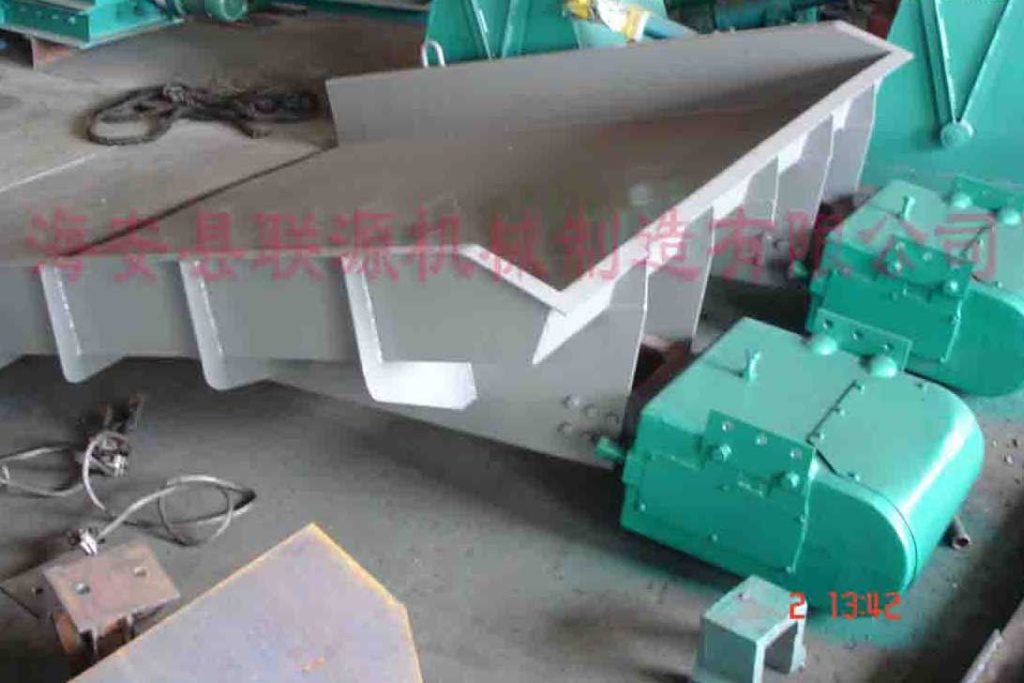

The Wide Trough Vibratory Feeder is directly driven by a new type of vibrating motor. It has a simple and compact structure, which is convenient for installation in a narrow space; the feeding is continuous and uniform, and it is equipped with an electric control box, which can realize the arbitrary adjustment of the feeding amount.
Read More: Grizzly Feeder: Basics, Top 4 Features – Buyer’s Guide 2023
Read More: Guide to the Best Vibratory Feeder & Grizzly Feeder in 2023
Technical Parameters
| Model | GZGKM-120 | GZGKM-160 | GZGKM-180 | GZGKM-200 | GZGKM-220 | GZGKM-280 | GZGKM-320 |
| Width （mm） | 1200 | 1600 | 1800 | 2000 | 2200 | 2800 | 2300 |
| Granularity（mm） | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 |
| Feeding capacity（t/h） | 100-1500 | 100-175 | 100-200 | 150-225 | 150-250 | 200-300 | 200-350 |
| Power（kW） | 2×1.50 | 2×1.50 | 2×2.20 | 2×2.20 | 2×2.20 | 2×3.70 | 2×3.70 |
| Model of Motor | YZO-20-6 | YZO-20-6 | YZO-30-6 | YZO-30-6 | YZO-30-6 | YZO-50-6 | YZO-50-6 |
| Vibration frequency（Hz） | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Amplitude（mm） | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 |
| Installation Angle | 0°-10° | 0°-10° | 0°-10° | 0°-10° | 0°-10° | 0°-10° | 0°-10° |
| Weight（kg） | 800 | 920 | 1200 | 1370 | 1480 | 1800 | 1970 |
