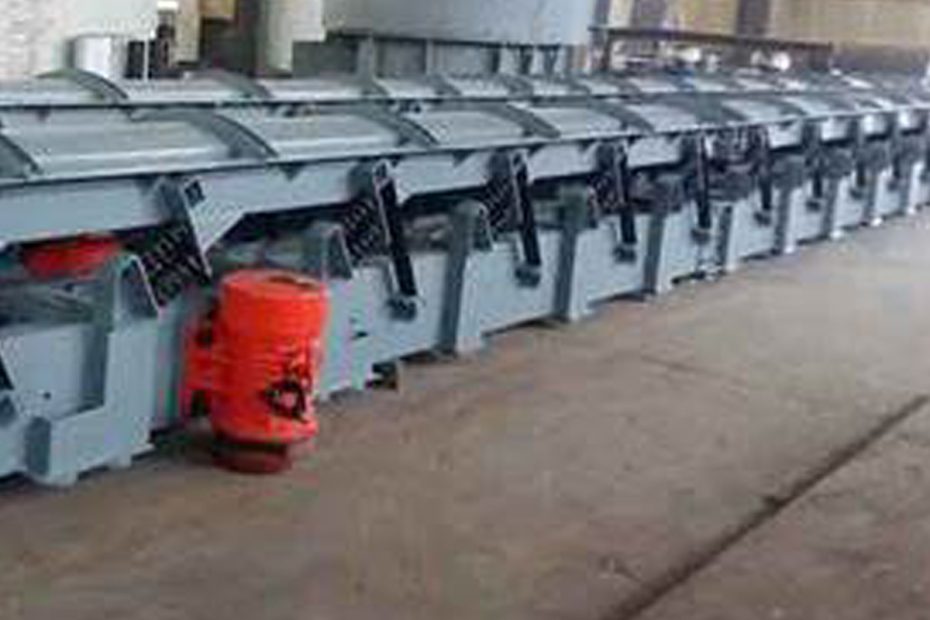

Inertial vibration conveyor is a continuous conveying machine without traction components. Inertial vibration conveyor is mainly composed of eccentric block, main shaft, material trough, etc. The centrifugal inertial force generated when the eccentric block rotates excites the material trough to vibrate, generally using medium frequency and amplitude.
Inertial vibration conveyor uses the principle of mechanical resonance to convey materials. The vibration conveyor starts and stops quickly and smoothly, has a long conveying distance, large conveying capacity, low energy consumption, low noise, low wear, and small maintenance workload.
Inertial vibration conveyor has a simple structure and stable performance. It can not only convey various normal temperature and ordinary materials. It can also convey many high-temperature, toxic and other unconventional materials; if the carrier is specially processed, the material screening, drying, heating, cooling and other processes can be realized during the conveying process.
Five Key Points For The Installation And Commissioning Of Inertial Vibration Conveyor
- The connection between the vibration motor and the conveying trough must be firm.
- The inertial vibration conveyor can be installed horizontally or within the range of 0 to -12° (the “-” sign indicates that the discharge end is lowered) as required.
- Before starting the machine, check whether the angles of the adjustable eccentric blocks and the fixed eccentric blocks of the two vibration motors are consistent. If not, adjust them to be consistent and tighten the fastening bolts.
- Try to start and observe whether the two vibration motors are in opposite directions. If not, swap any two-phase connections of any vibration motor.
- After starting the machine, observe that the machine body must not have lateral swing, the motor current must meet the requirements, and the whole machine has no abnormal sound.
Conclusion
The inertial vibration conveyor can be used to transport various materials in block, granular or powdery, normal temperature or high temperature. The inertial vibration conveyor is suitable for the transportation of various powders, granular, blocky and their mixtures below 800°C。The vibration conveyor system is widely used in metallurgy, mining, coal, building materials, chemicals, food, glass, ceramics and other industries.
